Water Leak Detector - LD 12
Water Leak Detector - LD 12
SKU:LD12
LD-12: Water Leak Detector: Easy-to-use water leak detector effectively screens outside noise.
The LD-12 water leak detector is a very easy-to-use detector, featuring six filters that allow the unit to screen outside noise and zero in on water leaks. The LD-12 is a must for every water utility as it's the professional's water leak detector. Standard includes amplifier with meter display and filter controls, ground microphone and hand switch, aviation-grade stereo headphones and heavy-duty ABS plastic carrying case.

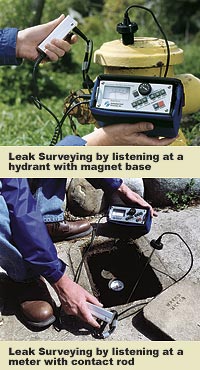

Features: Large meter display (with backlight) of sound loudness, allowing the user to pinpoint the exact leak location. Light weight amplifier, weighing only 31 ounces, with a padded carrying case and a strap. Six selectable filters, split into three "low side" filters (100 Hz, 200 Hz, or 400 Hz) and three "high side" filters (600 Hz, 800 Hz, or 1200 Hz). "Limiter" switch which cuts off all loud noises greater than 110dB. If you drop the sensor, you won't hurt your hearing. "Filter-Thru" switch, which turns OFF all of the amp's filters, allowing the user to hear all sounds from 50 Hz to 15,000 Hz. High-sensitivity ground microphone and low "electronic noise" amplifier combine to offer the very best quality sound for leak detection. Three accessories for attachment to the sensor: Ground plate for pinpointing on streets/slabs. Magnet base for surveying at hydrants/valves. Contact rod for surveying at meters/fittings. Amplifier Specifications: Size: 6.7 in x 2.8 in x 4.1 in (17.0 cm x 7.1 cm x 10.3 cm). Weight:2.0 lbs (0.9 kg). Input Power: Six (6) "AA" dry cell batteries. Battery Life: 1) 28 hours with backlight OFF (alkaline cells). 2) 14 hours with backlight ON (alkaline cells). Frequency Range: 1) 100 Hz to 1200 Hz (13 dB) with Filter-Thru OFF. 2) 15 Hz to 30,000 Hz (13 dB) with Filter-Thru ON. Power Consumption: 1) 70 mA or less with backlight ON. 2) 35 mA or less with backlight OFF. Input Impedance: 50,000 Ω. Output Impedance: 15 Ω. Amplification: 62 dB ± 3 dB. Warranty: 5 Years. Sensor: 1 Year.
ABS Carrying Case Specifications. Size: 18.5 in x 14.6 in x 7.5 in (47.0 cm x 37.1 cm x 19.0 cm). Weight (full): 15.0 lbs (6.8 kg).
Associated Product:
- Digital Water Leak Detector - LD18
Correlator for Metal Pipe
- Leak Survey Instrument - LD15
Aquascope Leak Detector
The LD-12 water leak detector is a very easy-to-use detector, featuring six filters that allow the unit to screen outside noise and zero in on water leaks. The LD-12 is a must for every water utility as it's the professional's water leak detector. Standard includes amplifier with meter display and filter controls, ground microphone and hand switch, aviation-grade stereo headphones and heavy-duty ABS plastic carrying case.
Features: Large meter display (with backlight) of sound loudness, allowing the user to pinpoint the exact leak location. Light weight amplifier, weighing only 31 ounces, with a padded carrying case and a strap. Six selectable filters, split into three "low side" filters (100 Hz, 200 Hz, or 400 Hz) and three "high side" filters (600 Hz, 800 Hz, or 1200 Hz). "Limiter" switch which cuts off all loud noises greater than 110dB. If you drop the sensor, you won't hurt your hearing. "Filter-Thru" switch, which turns OFF all of the amp's filters, allowing the user to hear all sounds from 50 Hz to 15,000 Hz. High-sensitivity ground microphone and low "electronic noise" amplifier combine to offer the very best quality sound for leak detection. Three accessories for attachment to the sensor: Ground plate for pinpointing on streets/slabs. Magnet base for surveying at hydrants/valves. Contact rod for surveying at meters/fittings. Amplifier Specifications: Size: 6.7 in x 2.8 in x 4.1 in (17.0 cm x 7.1 cm x 10.3 cm). Weight:2.0 lbs (0.9 kg). Input Power: Six (6) "AA" dry cell batteries. Battery Life: 1) 28 hours with backlight OFF (alkaline cells). 2) 14 hours with backlight ON (alkaline cells). Frequency Range: 1) 100 Hz to 1200 Hz (13 dB) with Filter-Thru OFF. 2) 15 Hz to 30,000 Hz (13 dB) with Filter-Thru ON. Power Consumption: 1) 70 mA or less with backlight ON. 2) 35 mA or less with backlight OFF. Input Impedance: 50,000 Ω. Output Impedance: 15 Ω. Amplification: 62 dB ± 3 dB. Warranty: 5 Years. Sensor: 1 Year.
ABS Carrying Case Specifications. Size: 18.5 in x 14.6 in x 7.5 in (47.0 cm x 37.1 cm x 19.0 cm). Weight (full): 15.0 lbs (6.8 kg).
