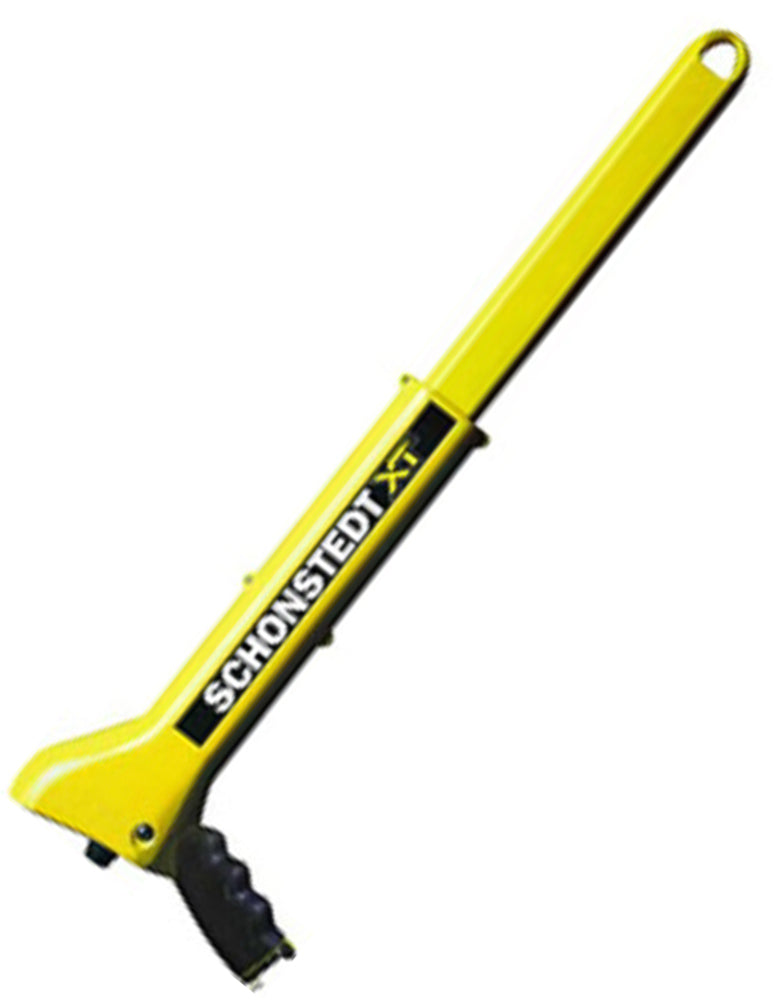

Magnetic Locator with Case
Magnetic Locator with Case
SKU:GA92XTD
GA-92XTd Magnetic Locator: The Schonstedt XTd is the most portable Magnetic Locator ever made. One hand operation. Operates in both retracted and extended modes. Finger tip control of volume and sensitivity. Quick change battery compartment. Battery indicator. One hand operation makes finding faster, providing both audio and visual indication of ferrous objects up to 16 feet underground. Rugged and reliable design. Detect the magnetic fields of all ferromagnetic objects property markers, manholes, septic tanks, well casings, valve boxes, service boxes, cast iron pipes, steel drums, unexploded ordnance up to sixteen feet below the surface.
GA92-XTd Features :
Comes with Holster & Belt, Small Carry Case for easy handling and storage, One Handed Operation, Battery Replacement in grip (does not expose electronics).
Lightweight, easy-to-use-design reduces search time.
Audio & Visual Output
Battery & Sensitivity Indicators
Continuous levels of Sensitivity
Operates in both retracted and extended modes
Signal Strength and Polarity Indications
No response to aluminum, brass, or copper
Patented HeliFlux¨ sensors
Modular construction; high performance components 7-year warranty
Audio Output: Audio Signal increases in frequency with gradient-field intensity. Idle frequency = 10 Hz. Visual Output*: Expanding bar graphs indicate polarity (+ or -) and relative strength (GA-92XTd model only). Battery Life: 24 Hours (intermittent usage). Input Power: Supplied by one 9-volt lithium battery. Battery Indicator: 4-segment LCD. Volume: Continuous control. Gain: Continuous control, with range indicated by a 4-segment LCD at each quarter turn, L @ 0-1/4, M @ 1/4-1/2, H @ 1/2-3/4, XH 3/4- Full. Weight: Approximately 2.4 lb. (1.1 kg). Operating Temp: -13Ω F to 140Ω F (25Ω C to 60Ω C). Overall Length: Unit extended: 26 in. (~66 cm)
Unit collapsed: 15.5 in (~39 cm). Water Resistant Length11.5 in. (~29 cm) (when extended). Nominal Sensor Spacing: 9.5 in. (~24 cm).
Construction 30% glass-filled nylon, high impact ABS, .2" (~5 mm) wall thickness.
