Magnetic Locator
Magnetic Locator
SKU:GA72CD

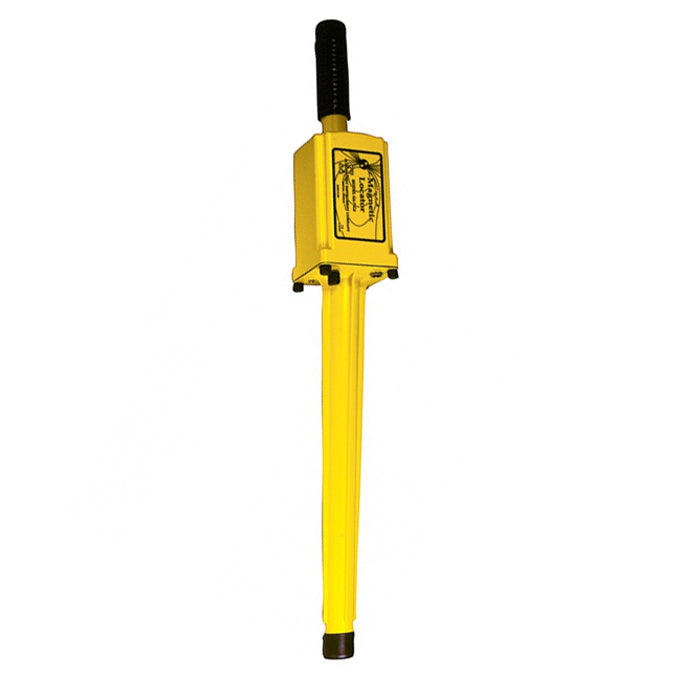

The GA-72Cd Magnetic Locator: So rugged and dependable it's backed by a 5-year warranty. Schonstedt's underground magnetic locators have been setting the standards for reliability and dependability for over 30 years. Easy-To-Use- The GA-72Cd Locator detects the magnetic field of iron and steel objects and energized power lines. It provides audio detection signals that peak in frequency when the locator's tip is held directly over the target. The GA-72Cd has the option of nulling or peaking. Only two Controls! Designed for one-hand operations, the On/Off-Sensitivity and Volume controls are located on the underside of the cover on both locators. This provides easy access, protects the knobs and contributes to their overall ruggedness and dependability.
Audio Output: Switch at "A" Signal increases or decreases in volume with gradient-field intensity
Switch at "B" Signal increases or decreases in frequency with gradient-field intensity
Video Output: Digital readout and expanding bar graphs indicate polarity (+ or-) and relative strength of the magnetic field.
Input Power: Supplied by two 9-volt lithium batteries.
Battery Life: 60 Hours (intermittent usage).
Battery Check: 4-segment LCD BATT indicator.
Output: Approximately 40 Hz audio tone on speaker.
Tone frequency increases or decreases with gradient-field intensity.
Weight: Approximately 2.5 lb. (1.14 kg).
Operating Temp: -13Ω to 140ΩF (-25Ω to 60ΩC).
Overall Length: 34.5 in. (87.6 cm).
Waterproof Length: 21 in. (53.3 cm).
Nominal Sensor Spacing: 14 in. (35.6 cm).
Construction: Rugged, all solid state, polycarbonate & ABS casing."
