AP Certified Testing

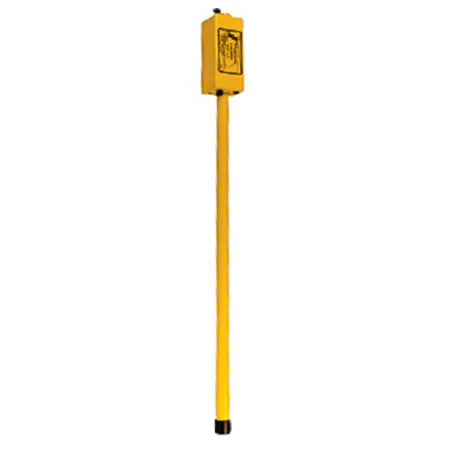

Magnetic Locator
Magnetic Locator
SKU:GA52CX
The GA-52Cx Magnetic Locator detects the magnetic field of iron and steel objects and energized power lines. Provides audio detection signals that peak in frequency when the locator's tip is held directly over the target.
This underground magnetic locator has been setting the standards for reliability and dependability. Designed to withstand the rigors of daily on-site usage and a wide range of environmental conditions. Unmatched sensitivity allows you to find what you're looking for quickly, without the risk of passing over your target.
Only Two Controls. Designed for one-hand operations, the On/Off-Sensitivity and Volume controls are located on the underside of the cover on both locators. This provides easy access, protects the knobs and contributes to their overall ruggedness and dependability.
Includes: Magnetic locator with batteries, Hard carrying case.
Features:
Enhanced target definition, Unsurpassed detection range, Piezoelectric speaker,Clear, sharp, detection signal pinpoints the target. Five individual sensitivity settings. No response to aluminum, brass, or copper. Ease of operation reduces search time. With experience, user can distinguish between small pieces of scrap iron and actual targets. 40-hours operation (intermittent usage). Modular construction. High performance components. Weights approximately 2 1/2 lbs. Weather-Protected Controls. Rugged Lightweight Hard Case.
Patented HeliFlux Sensors
Specifications:
Input Power: Two alkaline 9-volt batteries. Battery Life: 40 hours (intermittent usage). Output: Approximately 40 Hz audio tone on speaker. Tone frequency increases or decreases with gradient-field intensity. Operating Temp: -13 Degrees to 140 Degrees F (-25 Degrees to 60 Degrees C). Overall Length: 42.3 inches (107.4 cm). Waterproof Length: 34.5 inches (87.6 cm). Nominal Sensor Spacing: 20 inches (50.8 cm). Construction: Modular, all Solid State.
Warranty: Seven year manufacturer's limited warranty.
Associated Product:
- Magnetic Locator - ML1M
- Magnetic Locator - ML-3l
- Aqua Magnetic Locator
- Magnetic Locator - GA72CD
Magnetic Locator - GA92XTD
This underground magnetic locator has been setting the standards for reliability and dependability. Designed to withstand the rigors of daily on-site usage and a wide range of environmental conditions. Unmatched sensitivity allows you to find what you're looking for quickly, without the risk of passing over your target.
Only Two Controls. Designed for one-hand operations, the On/Off-Sensitivity and Volume controls are located on the underside of the cover on both locators. This provides easy access, protects the knobs and contributes to their overall ruggedness and dependability.
Includes: Magnetic locator with batteries, Hard carrying case.
Features:
Enhanced target definition, Unsurpassed detection range, Piezoelectric speaker,Clear, sharp, detection signal pinpoints the target. Five individual sensitivity settings. No response to aluminum, brass, or copper. Ease of operation reduces search time. With experience, user can distinguish between small pieces of scrap iron and actual targets. 40-hours operation (intermittent usage). Modular construction. High performance components. Weights approximately 2 1/2 lbs. Weather-Protected Controls. Rugged Lightweight Hard Case.
Patented HeliFlux Sensors
Specifications:
Input Power: Two alkaline 9-volt batteries. Battery Life: 40 hours (intermittent usage). Output: Approximately 40 Hz audio tone on speaker. Tone frequency increases or decreases with gradient-field intensity. Operating Temp: -13 Degrees to 140 Degrees F (-25 Degrees to 60 Degrees C). Overall Length: 42.3 inches (107.4 cm). Waterproof Length: 34.5 inches (87.6 cm). Nominal Sensor Spacing: 20 inches (50.8 cm). Construction: Modular, all Solid State.
Warranty: Seven year manufacturer's limited warranty.
